Mechanical Wastewater Bar Screen Grilling Screen Machine CFH Rotary Grille

WUXI CHENENG ENVIRONMENTAL ENGINEERING & EQUIPMENT CO.,LTD
Contact Now

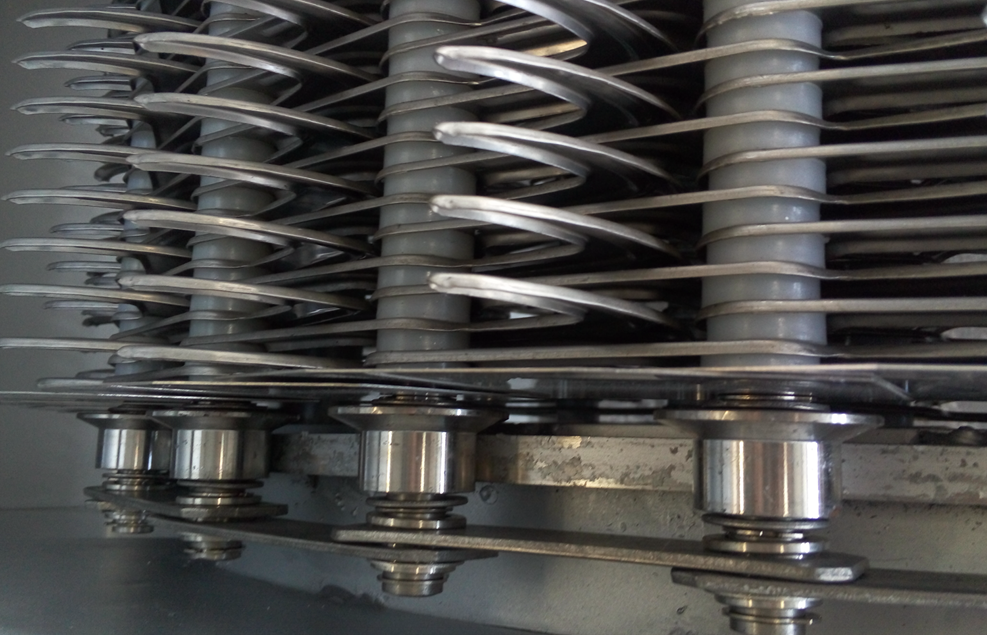

Mechanical Wastewater Bar Screen Grilling Screen Machine CFH Rotary Grille

  • 1
  • 2
  • 3

Brand Name : CHENENG

Model Number : CFH

Certification : CE/ISO

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Supply Ability : 20 pcs per month

Delivery Time : 15 working days after received your payment

Packaging Details : nude packing, bulk packed in wooden cases

Product Name : Rotary Grille

Application : Water Treatment

Material : CS Or SS

Standard : ISO

Structure : Compact Connection

Contact Now

Mechanical bar screen/grilling screen machine/CFH Rotary Grille

Application

■ It is applied to process urban sewage, as the inlet in the running water industry and power plant, and also process the sewage from the textile, food processing, paper-making and leather industries

The pre-screening equipment in the processing technology.

Advantages

■ The biggest advantages of the equipment are high automation degree, high separation efficiency, little power consumption, absence of noise, good anti-corrosion performance;

■ The operation spacing of the equipment can be easily adjusted in accordance with customer demands to realize the periodic operation;

■ The equipment has strong self-cleaning capacity, and has no blocking phenomenon, so there is small daily maintenance workload;

Model

Parameter

CFH-

500

CFH-

600

CFH-

700

CFH-

800

CFH-

900

CFH-

1000

CFH-

1100

CFH-

1200

CFH-

1300

CFH-

1400

CFH-

1500

Equipment Breadth B (mm) 500 600 700 800 900 1000 1100 1200 1300 1400 1500
Channel Breadth B1 (mm) B+100
Effective Grille Breadth B2 (mm) B-157
Bolt Pitch B3 (mm) B+200
Total Equipment Breadth B4 (mm) B+350
Tooth Clearance B (min)

t=10

0

1≤b≤10

t=15

0

10<b≤50
Installation Angle α (º) 60-85
Channel Height H (mm) 800-12000
Discharge Outlet Height H1 (mm) 60-1200
Total Equipment Height H2 H+H1+1500
Rear-cabinet Mount Height H3 (mm)

t=10

0

≈1000

t=15

0

=1100
Tooth Velocity V (m/min) =2.1
Motor Power N (kw) 0.55-1.1 0.75-1.5 1.1-1.2 1.5-3.0
Water Head Loss (mm) ≤20 (Without blocking)
Civil Engineering Load P1(KN) 20 25
P2(KN) 8 10
△P(KN) 1.5 2.0
